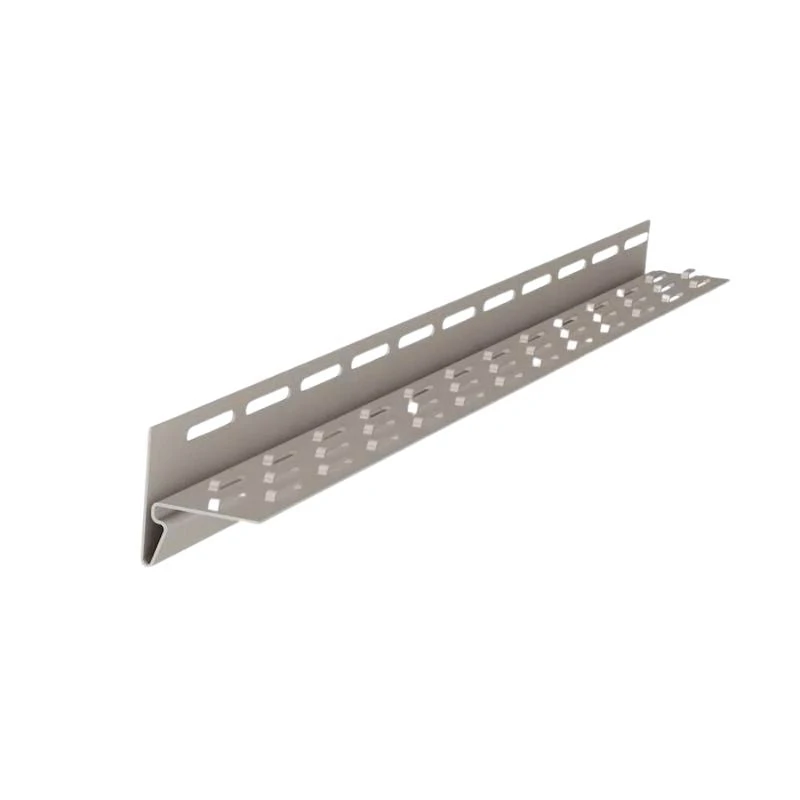

Vox Fronto Bottom Ventilation Trim

Vox Fronto  Bottom Ventilation Trim for Fronto Slat Wall Exterior Panels

Installation –
The supporting structure can be made of both wooden battens and metal profiles mounted directly to the walls.

• Wooden battens should be made of good quality wood,
  without knots, with a moisture content of 15-17%,
  properly impregnated with dimensions of 30 x 22 mm.

• For metal construction, we use as standard galvanised
  profiles with UW/CW 75 cross-section, width 50,4 lm. *
• Provide adequate ventilation from the bottom (approx. 150 mm from the ground) and the top of the wall (approx. 20 mm).

• Battens are mounted at a distance of max. 40 cm, counting from the centre of the battens.

Maintenance –
Panels and moldings can be cleaned from time to time with a household detergent solution at a temperature not exceeding 40°C. Do not use solvents and similar aggressive and caustic liquids. Rinse the surface with clean water after washing.

Individual Trim Size
Length : 3050 mm OR equivalent to 305 cm

Trim Pack Size
The price shown is for a pack of 1 trim.

View – Vox Fronto Product Catalogue
View – Vox Fronto Technical Data Sheet

ALL PRICES INCLUDE VAT

• Vox Fronto  Bottom Ventilation Trim for Slat Wall Exterior Panels
• Quick And Easy Installation
• Lightweight for Easy Installation
• Durable & Hardwearing – Withstands storms & hurricanes
• Product Code  VFT3024118

How To Fit
